XF-GSC-30K45L-40DC-EU
All-in-One Solar, Storage & 40 kW DC EV Charging Cabinet
Solar PV Inverter
Storage System
EV Charger
3D Exploration
40 kW DC Charging · 30 kW PV · 45.7 kWh Storage
All-in-One Smart Energy Hub: Ultra-Fast Charging, Precision Power Control
⚡ Ultra-Fast DC Charging: 40 kW CCS2 fast charging for rapid power-up, eliminating long waits.⚙️ Three-Phase Stability: 30 kW Three-Phase PCS delivering robust, balanced power output for demanding needs.☀️ Dual MPPT Tracking: 30 kW Dual-Channel MPPT to maximize solar harvest and optimize generation efficiency.🛡️ Seamless Switch: Grid-tied/off-grid switching in < 10ms for instant backup power and zero interruption.
All-Weather Industrial Grade Protection: Extreme Temperature Control, Long-Lasting Durability
🌡️ Wide-Temp Adaptability: Liquid cooling & battery self-heating system, effortlessly handling extreme environments from -30°C to 60°C.🛡️ Rugged & Anti-Corrosion: IP65 rating paired with advanced anti-salt-spray corrosion technology to conquer harsh outdoor conditions.⏳ Extended Lifespan: Over 3000 cycle lifespan, delivering reliable and long-lasting performance.📐 Compact Footprint: Space-saving dimensions of 1050 x 550 x 1730 mm designed for seamless integration across various installation layouts.
30 kW PV · 45.7 kWh Storage · 40 kW DC Output
🔋 Massive Capacity — 45.7 kWh LFP (Lithium Iron Phosphate) storage delivering reliable, long-lasting power for your entire home.👁 Full-Link Visibility — Real-time tracking of the entire energy conversion and transmission process.⚡ Precision Insight — Say goodbye to blind energy use with all-in-one consumption data at a glance.🕒 Smart Schedule — Effortlessly customize household electricity time slots for maximum efficiency and savings.
Scroll to explore the product
Price Calculator
Build Your System — See Local Pricing
We detect your region from your connection and estimate hardware plus installation for every component of the XF-GSC-30K45L-40DC-EU using current market averages.
Storage Battery
Configuration: 45.7 kWh
Hardware
Installation
Subtotal
DC EV Charger
Configuration: 40 kW
Hardware
Installation
Subtotal
USD
Hardware
Installation
Estimated Total
No compatibility guesswork — it is already solved
Buying the inverter, battery and charger separately leaves you to match them yourself: voltage windows, BMS protocols, firmware versions and warranty boundaries. XF-GSC-30K45L-40DC-EU ships as one factory-matched cabinet — integrated, commissioned and tested as a single system.
Prices are market reference averages for the detected region and may vary by brand, certification and site conditions. A formal quotation is provided on request.
No exact match? We scale from the nearest standard size — for example a 30 kW inverter is priced as 2 x 15 kW.
Product Videos
Deep dive into XF-GSC-30K45L-40DC-EU
2:34
3:12
1:48
4:20
2:05
Technical Specifications
Complete Technical Specifications
Every electrical, mechanical and environmental figure for the XF-GSC-30K45L-40DC-EU all-in-one solar, storage and EV charging unit — one cabinet, one high-voltage DC bus.
Typical values under standard test conditions. Items marked “per nameplate” are confirmed at production.
Battery System
| Cell chemistry | LiFePO4 (LFP) |
|---|---|
| Nominal capacity | 45.7 kWh |
| Nominal voltage | 448 V DC / 102 Ah |
| Working voltage range | 350 – 511 V DC |
| Cycle life | ≥ 3000 cycles |
Inverter / PCS
| Rated power | 30 kW continuous output |
|---|---|
| Grid voltage | 400 V AC, three-phase (±15%) |
| Maximum efficiency | ≥ 97.6% |
| Current THD | THDi < 3% |
| Transfer time | ≤ 10 ms grid / off-grid |
PV MPPT
| Input power / channels | 30 kW · dual MPPT |
|---|---|
| MPPT voltage range | 250 – 850 V DC |
| Tracking efficiency | ≥ 99.5% |
DC Fast Charging
| Max charging power | 40 kW DC · single gun |
|---|---|
| Output voltage / current | 200 – 800 V DC / 125 A |
| Connector | CCS2 (IEC 61851) |
| Protocols | ISO 15118 / OCPP 2.0.1 Plug and Charge (PnC) |
| Cable | 5 m standard |
| Leakage protection | 6 mA DC + 30 mA AC |
Thermal & Environment
| Thermal management | Integrated liquid cooling + heating Cell ΔT ≤ 3°C, precision ±2°C |
|---|---|
| Operating temperature | -30 ~ +60 °C |
| Protection rating | IP65 (outdoor installation) |
| Operating noise | ≤ 55 dB @ 1 m |
| Design life | ≥ 15 years |
Interface & Communications

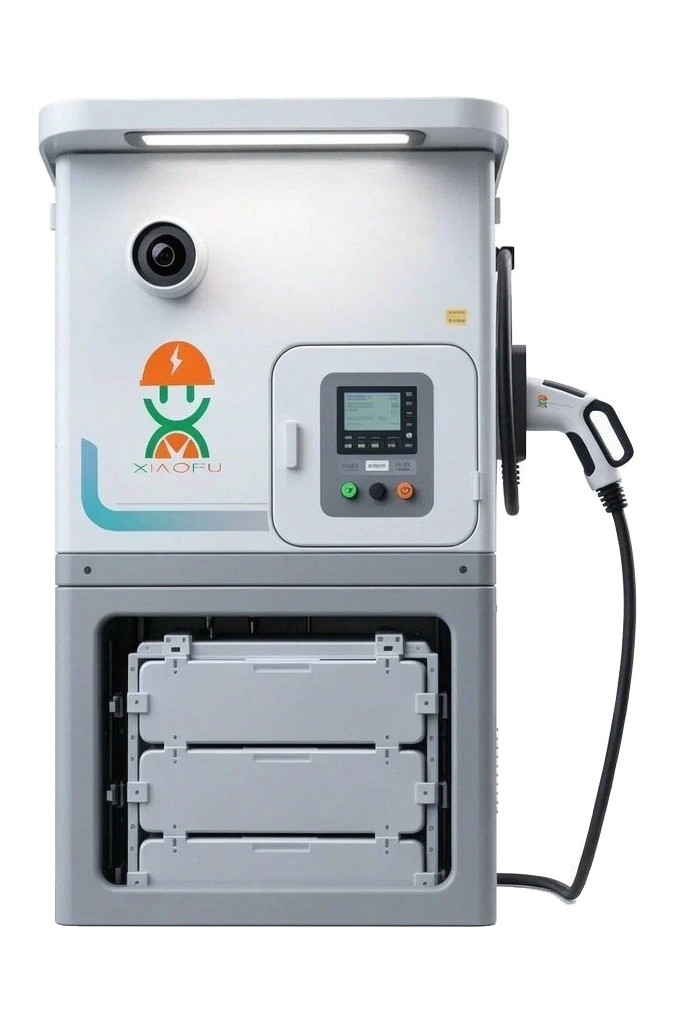

| User interface | 7-inch touch HMI (800×480) |
|---|---|
| Communications | WiFi / 4G / RS485 / CAN |
| Updates | OTA supported |
| Enclosure / colour | Outdoor enclosure, RAL 7035 light grey default, customisable |
| Dimensions (W×D×H) | 1050 × 550 × 1730 mm |
| Unit weight | Per nameplate |
Trusted by leading energy companies worldwide
ChargePoint
EDP
Shell
Enel
IBERDROLA
ENGIE
About Us
Who We Are
Xiaofu Energy is a Shenzhen-based manufacturer and engineering partner for integrated solar PV inverter, energy storage system and EV charger solutions.
Founded in 2016, our company has been dedicated to designing, developing and manufacturing energy storage and charging equipment for electric vehicle infrastructure. What began as a single charging post has grown into a complete energy platform — one that captures solar generation, stores it, and dispatches it exactly when a vehicle, a building or a fleet needs it.
Today we operate our own OEM and ODM engineering team, in-house production lines and a complete testing system. We export to more than 40 countries, and supply distributors, EPC partners and installers who need a single accountable supplier rather than three separate vendors. From the XF-GSC-30K45L-40DC-EU to the XF-GSC all-in-one solar-storage-charging unit, our philosophy is the same: one cabinet, one high-voltage DC bus, one commissioning process, one platform to monitor.
Why We Started
In the early days, our founders kept running into the same frustration: the charging solutions available on the market simply did not meet expectations for the EV charging experience. Charging needed to be convenient, efficient, safe and good-looking — yet most charging posts delivered slow speeds, poor user experience and scattered, under-utilised public infrastructure.
So we set out to build something different. After years of research and development, the Xiaofu team arrived at the “Integrated + Modular” solution: a system highly integrated by combining the inverter, the battery energy storage system, the EV charger and the communications system into one platform, while every module stays modular so configurations can be combined freely to match actual project demand. The result lets partners build a complete charging station quickly, and measurably improves both charging efficiency and the end-user experience.
What We Do
Three Disciplines, One Architecture
Solar, storage and charging engineered on a single integrated architecture — so power flows end to end without the losses and complexity of separate components.
☀️Solar PV Inverter
Hybrid & Off-Grid Inverters
Dual-MPPT solar input paired with a high-efficiency three-phase PCS — as in our XF-GSC all-in-one line. One control unit manages PV input, battery, grid exchange and load output.
🔋Energy Storage
LiFePO4 Battery Energy Storage
LiFePO4 cells with 6000+ cycle life and integrated liquid cooling and heating. Modular by design, so capacity scales without redesign.
⚡EV Charging
DC Fast & Mobile Chargers
From the XF-GSC-30K45L-40DC-EU all-in-one cabinet (30 kW PV, 45.7 kWh storage, 40 kW CCS2 DC) to compact 40 kW CCS2 units, with ISO 15118 and OCPP 2.0.1 including Plug and Charge.
⚙️System Integration
Integrated PV-ESS-Charger Platform
Our patented integrated photovoltaic-storage-charging architecture replaces three separate boxes with one pre-commissioned platform on a high-voltage DC bus.
📈Energy Management
EMS & Monitoring
Full-link visibility, precision consumption insight and smart scheduling — with remote monitoring, diagnostics and OTA updates.
🔧Warranty & Support
Factory-Direct Service & Warranty
One model, sold factory-direct: 5-year warranty, remote diagnostics, OTA updates and global after-sales — you deal with the factory that built your cabinet, not a chain of distributors.
Capability
Strong Capacity in Figures
Manufacturing scale that supports multi-market delivery — the numbers behind our factory-direct promise.
40+
Countries Exported
120+
Enterprise & OEM Partners
9+
Years of Manufacturing
68%
Business from Overseas
Intellectual Property & Compliance
Systematic IP coverage around the high-voltage DC bus and multi-source coordination control, with compliance designed for global markets including Europe.
3 invention patents
5 utility models
CE
RoHS
WEEE
GDPR
IEC 61851
ISO 15118
OCPP 2.0.1
Quality & Markets
Quality Control & Global Markets
Designers with 10+ years of experience and multiple production lines support stable output for global orders, backed by a 5-year warranty as standard.
| Region | Representative Markets | Focus Application |
|---|---|---|
| Europe | UK, Germany, Italy, France, Romania, Spain | Fleet & municipal charging, commercial C&I |
| Americas | United States | Off-grid sites, mobile charging stations |
| Middle East | Saudi Arabia, UAE | Extreme-temperature infrastructure, heavy machinery |
| Southeast Asia | Singapore, Thailand | Two-wheeler and light commercial fleets |
| Russia & CIS | Russia | Cold-climate off-grid charging, construction |
FAQ
Frequently Asked Questions
About Xiaofu Energy and our integrated solar, storage and EV charging systems.
Commitments
Our Commitments in Every Aspect
Products
Capability Without Compromise
We develop integrated energy solutions with advanced capabilities and hold an uncompromising standard for product quality.
Services
One-Stop Home Energy Service
From load assessment and sizing to installation guidance, commissioning and after-sales — one factory-direct partner covers solar, storage and charging, so installers finish sooner and homeowners have a single point of contact.
Homes
Built Around Your Home
Engineered for a single home: it absorbs your rooftop PV, carries the evening peak and charges your EV overnight — cutting the electricity bill, keeping essential circuits alive through outages and shortening the payback.
Ready for an All-in-One Solar, Storage & EV Charging Cabinet?
Contact our team for a customized solution. Our integrated cabinet combines solar PV, battery storage and EV fast charging in a single unit — factory-direct, with a 5-year warranty and global after-sales support.
